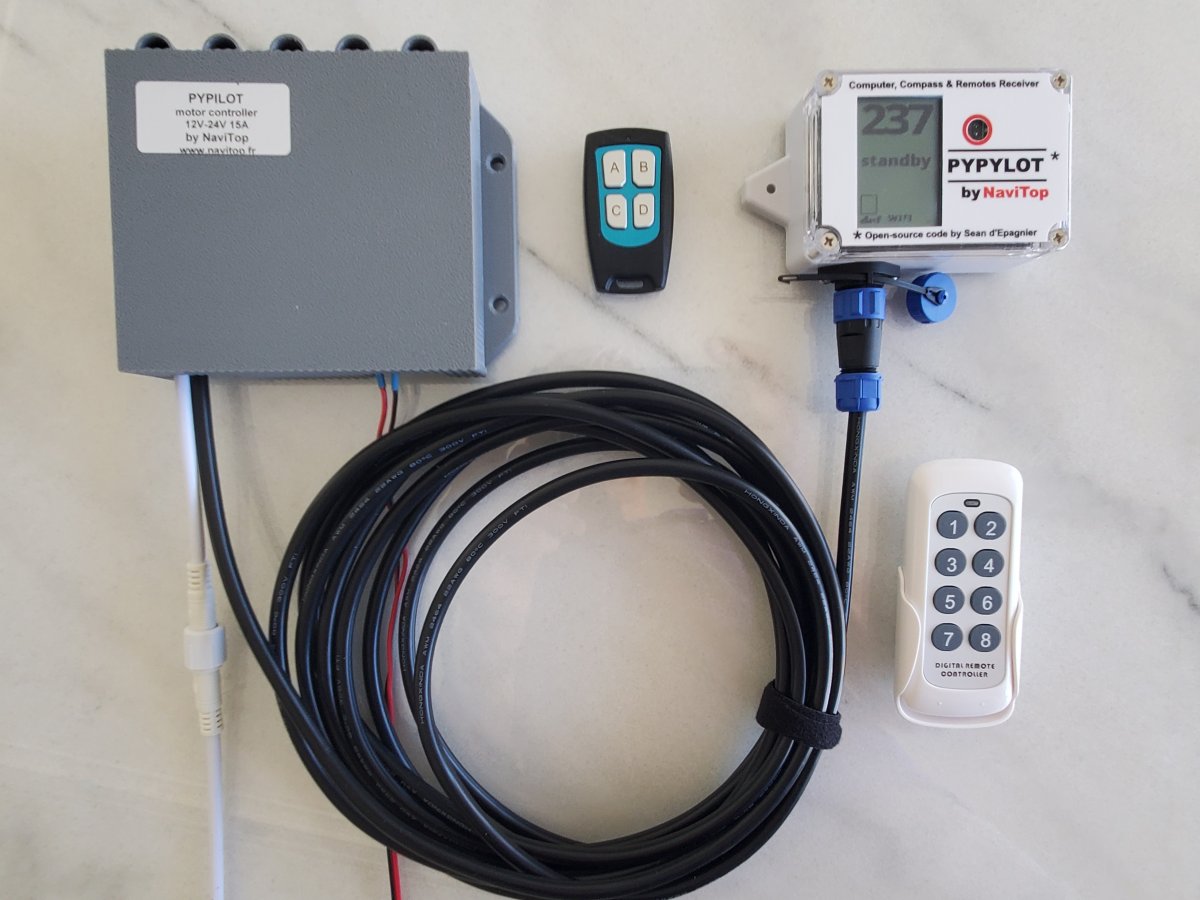

When paired with a Pypilot motor controller, this computer forms a high-performance marine autopilot that ensures excellent course-keeping while consuming less power than most other autopilots. Several Pypilot motor controller models are available to ensure compatibility with all existing steering actuators. Note that the 12-24V 30A model with clutch control is compatible with all actuators, whereas the 12V 10A model (without clutch control) is suitable only for actuators drawing less than 10A that do not require a clutch solenoid or valve.

It differs from the CR computer by featuring a waterproof connector base that allows it to connect to the motor controller via a single cable. This eliminates the need for a separate 5V power supply for the computer. This option is compatible only with Navitop 10A, 15A, or 30A motor controllers. Cables are sold separately in lengths of 3, 5, or 9 meters.

The ready-to-use computer features a watertight housing and a high-performance compass utilizing a modern 9-axis inertial measurement unit (IMU). It comes with an 8-button radio remote control and a second, waterproof 4-button remote control.

The location of the autopilot computer on the boat must be carefully chosen to avoid moving magnetic interference and to ensure good radio and Wi-Fi signal propagation. It should be kept away from high-traffic areas and surfaces where objects might be placed, ensuring that no moving metal or magnetic objects pass near or are set down close to the unit. The housing is not designed for long-term UV exposure in outdoor environments.

The computer is controlled via radio remote controls or over Wi-Fi using a computer, tablet, or smartphone.

All Pypilot motor controllers accurately measure the motor's current draw; this allows for effective travel limiting with most actuators when consumption reaches a set threshold. Pypilot also supports the use of a rudder angle sensor and limit switches.

In addition to Compass mode, Pypilot can operate in apparent wind, true wind, or GPS modes, provided it receives data from a wind vane and GPS. Data can be supplied via Wi-Fi.

Optionally, the computer can exchange NMEA data via USB (CU option). This requires the use of an NMEA-to-USB converter or a multiplexer with a USB output (not included). By adding a USB 2.0 hub or a multiplexer cable, multiple USB-to-NMEA0183, USB-to-NMEA2000, or USB-to-SeaTalk converters can be connected. Pypilot automatically detects and configures NMEA0183 data exchanged via the USB port. It is worth noting that several isolated USB-to-NMEA0183 and USB-to-NMEA2000 converters require no configuration and cost less than many multiplexers, while providing total galvanic isolation between all instruments; this enhances the system's robustness by eliminating ground loops and ensuring resilience against electrical surges, such as the indirect effects of lightning.

In addition to being controllable via Wi-Fi, Pypilot broadcasts all its data—including data received through the optional USB port—to other applications over Wi-Fi. This creates a single Wi-Fi network that enables both Pypilot control and the sharing of navigation data with other devices.

The computer's printed circuit board integrates the TDK ICM20948 IMU chip as well as the remote control receiver antenna. To ensure reliable operation in extremely humid conditions, the IMU is encapsulated in an insulating compound.

The accelerometers and magnetometers within the computer's IMU come pre-calibrated. This allows for immediate installation; the compass becomes operational after performing a level reset and simply slowly rotating the boat 360 degrees. Remote controls are pre-configured in the computer, though you can add new ones or customize button functions.

Pypilot runs perfectly on a Pi Zero W (at 30% load). Replacing it with a Pi Zero 2W merely results in faster startup times for the Pypilot web server, at the cost of higher power consumption.

The motor controller is not included.

An 8-button remote control and a 4-button watertight remote control are provided.

If you already have a Pi Zero, we offer a ready-to-use computer with an SD card for €140 (excluding VAT), but without the Pi Zero. The SD card, programmed for a Pi Zero, contains the pre-calibration and configuration data for the computer's radio remote controls.
