This simple Pypilot computer, ready to use, is equipped with a waterproof enclosure and a high-performance compass using a modern 9-axis inertial measurement unit (IMU) sensor.

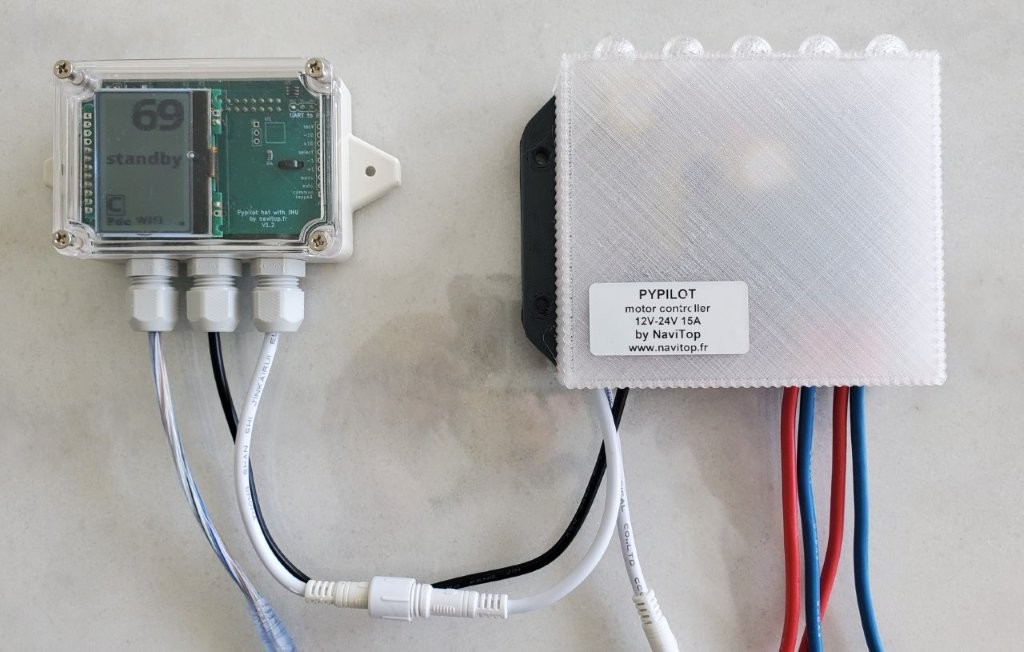

Combined with a Pypilot motor controller, this Pypilot computer creates a high-performance, ultra-low-power autopilot.

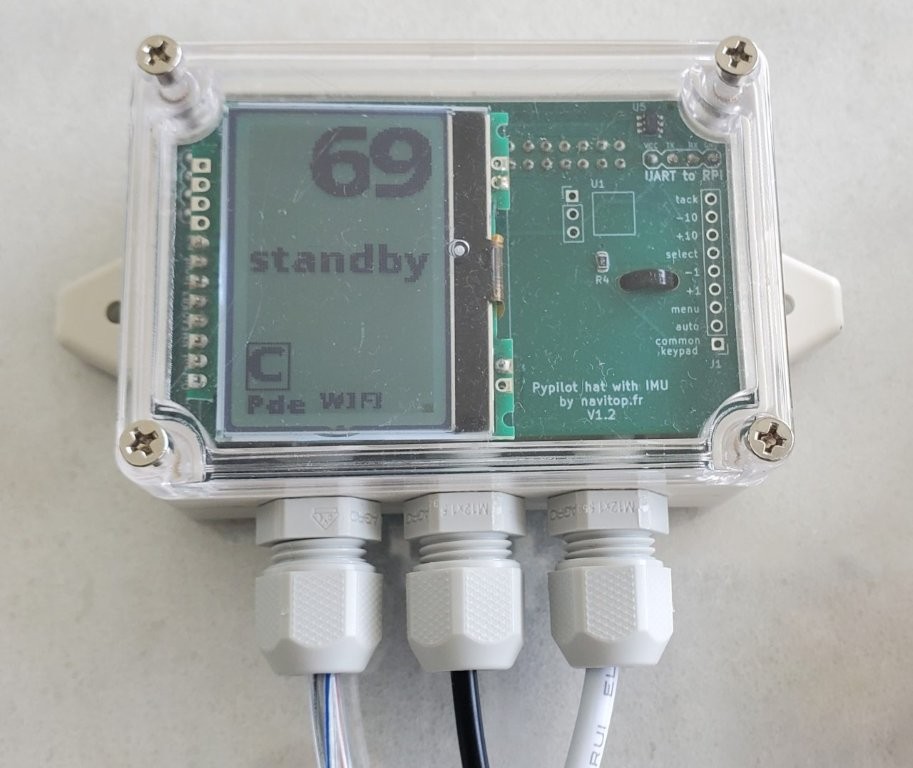

The waterproof enclosure includes a PCB integrating the LCD display, the IMU, the UART interface to the motor controller, an NMEA0183 port with a galvanically isolated input, EMC surge protection. All cables pass through quality cable glands.

The Raspberry Pi Zero 2W is included with its microSD card with pypilot-tinycore.

This computer also comes with cable to power 5V DC, a waterproof 4-pin connector to the controller and a waterproof 4-pin connector for NMEA0183 port.

Enclosure: 85 x 58 x 33 mm (96mm between the two fixing holes)

Motor controller not included

This autopilot computer does not have a radio remote controls receiver.

Manual (en)

Manuel (fr)

Electronic schematic

Price without taxe and shipping
